ValueRAM KVR32S22D8/16

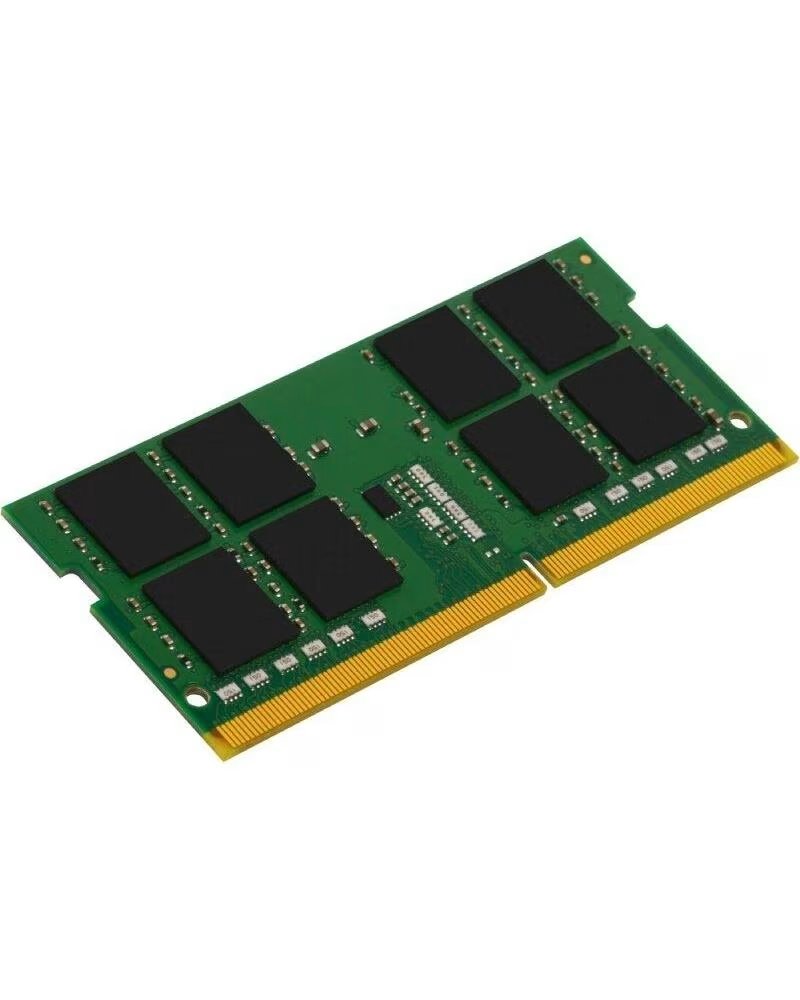

This document describes ValueRAM's KVR32S22D8/16 is a 2G x 64-bit (16GB), 2Rx8, non-ECC, DDR4-3200 CL22 SDRAM (Synchronous DRAM) memory module, based on sixteen 1G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR4-3200 timing of 22-22-22 at 1.2V. This 260-pin DIMM uses gold contacts.
Features
- Power Supply: VDD = 1.2V Typical
- VDDQ: 1.2V Typical
- VPP: 2.5V Typical
- VDDSPD: 2.2V to 3.6V
- Internal termination: Nominal and dynamic (ODT) for data, strobe, and mask signals
- Auto-refresh: Low power (LPASR)
- Data bus inversion: (DBI) for data bus
- On-die VREFDQ: Generation and calibration
- Dual-rank: Yes
- EEPROM: Serial Presence Detect (SPD) Data I2
- Internal banks: 16 internal banks; 4 groups of 4 banks each
- Burst: Fixed Burst Cut (BC) of 4 and Burst Length (BL) of 8 via the Mode Register Set (MRS)
- Selectable: BC4 or BL8 on-the-fly (OTF)
- Topology: Fly-by
- Terminated: Command and address bus
- PCB: Height 1.18" (30.00mm)
- Compliance: RoHS compliant and halogen-free
Specifications
Memory: Capacity 16 GB, Type DDR4, Form Factor 260-pin SO-DIMM, Speed 3200 MHz, Latency CL22, Voltage 1.2 V, ECC No, Transfer Rate 12 Gbps
KINGSTON RAM MEMORY VALUERAM 16GB DDR4 3200MHZ SODIMM 12V CL22 KVR32S22D8/16
€181.37
(VAT included)
