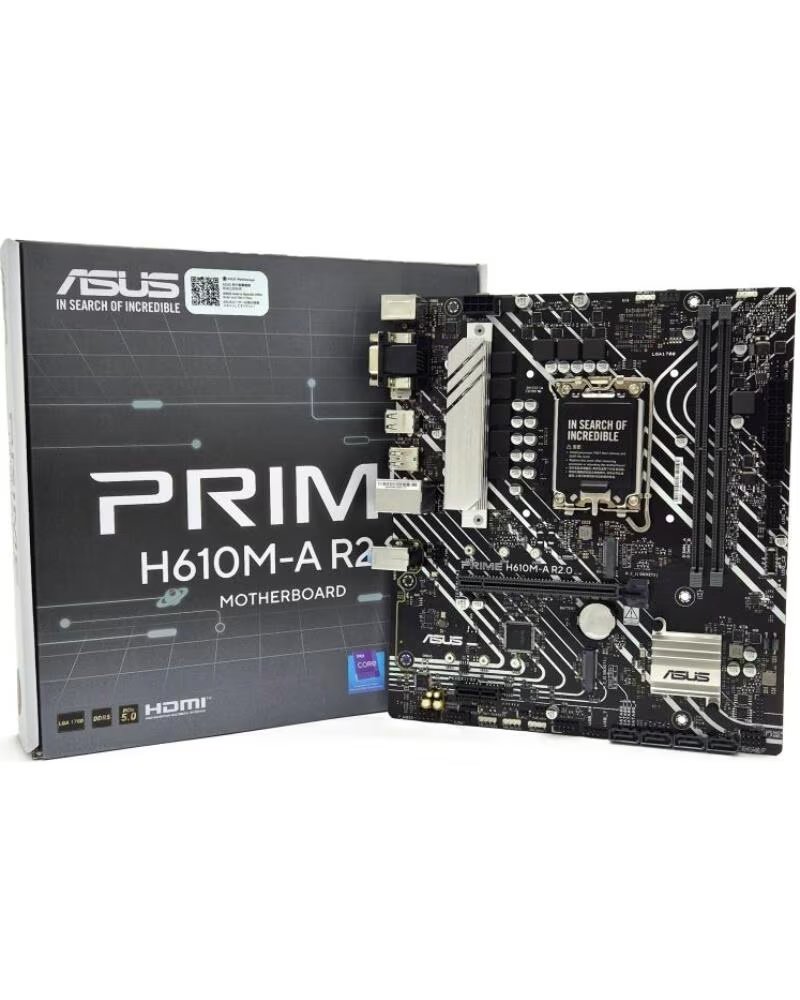

ASUS MOTHERBOARD PRIME H610M-A R20 SOCKET 1700 DDR5 PCIE 40 MICRO ATX

Specifications

Platform

Socket: LGA1700

Chipset: Intel H610

Compatible Processors: Intel Core (14th, 13th & 12th Gen), Pentium Gold & Celeron

Technologies: Intel Turbo Boost 2.0 / Turbo Boost Max 3.0*

Memory

Type: DDR5

Max Capacity: 96 GB

Slots: 2 x DIMM

Speed: up to 5600+ MT/s (OC)

Architecture: Dual Channel

Compatibility: Non-ECC Unbuffered (On-Die ECC)

XMP Support: Yes

Graphics

Video Outputs:

- 1 x DisplayPort 1.4 (up to 4K@60Hz)

- 1 x HDMI 2.1 (up to 4K@60Hz)

- 1 x VGA (D-Sub)

Expansion

1 x PCIe 4.0 x16

1 x PCIe 3.0 x1

Storage

2 x M.2 (PCIe 3.0 x4 / x2, 2242/2260/2280)

4 x SATA 6 Gb/s

Network

LAN: Intel Gigabit Ethernet with ASUS LANGuard

USB

Rear: 1 x USB 10Gbps (Type-A), 4 x USB 2.0

Front:

- 1 x USB-C 5Gbps (up to 5V/3A)

- 2 x USB 5Gbps

- 3 x USB 2.0

Audio

Chip: Realtek HD Audio

Channels: 7.1

Features: Audio Shielding, premium capacitors, dedicated PCB

Rear Panel

1 x USB 10Gbps (Type-A)

4 x USB 2.0

1 x DisplayPort

1 x HDMI

1 x VGA

1 x RJ-45 (Intel 1Gb)

3 x Audio jacks

2 x PS/2 (keyboard and mouse)

Internal Connectors

1 x ATX 24-pin

1 x CPU 8-pin

1 x CPU fan

2 x Chassis fans

2 x M.2

4 x SATA

USB headers (USB-C, USB 3.2, USB 2.0)

Front panel audio, TPM, COM, S/PDIF, system panel

Lighting: 3 x Addressable Gen 2 + 2 x Aura RGB

Special Features

ASUS 5X Protection III

Q-DIMM, Q-LED Core, Q-Slot

VRM Heatsink

Aura Sync

Software and BIOS

BIOS: UEFI AMI (128 Mb)

Functions: CrashFree BIOS, EZ Flash, UEFI EZ Mode

Software: Armoury Crate, AI Suite 3, Fan Xpert 2+, ASUS CPU-Z

Operating System

Compatible with Windows 11 / Windows 10 (64-bit)

Form Factor

Micro ATX

Dimensions: 24.4 x 21.6 cm
