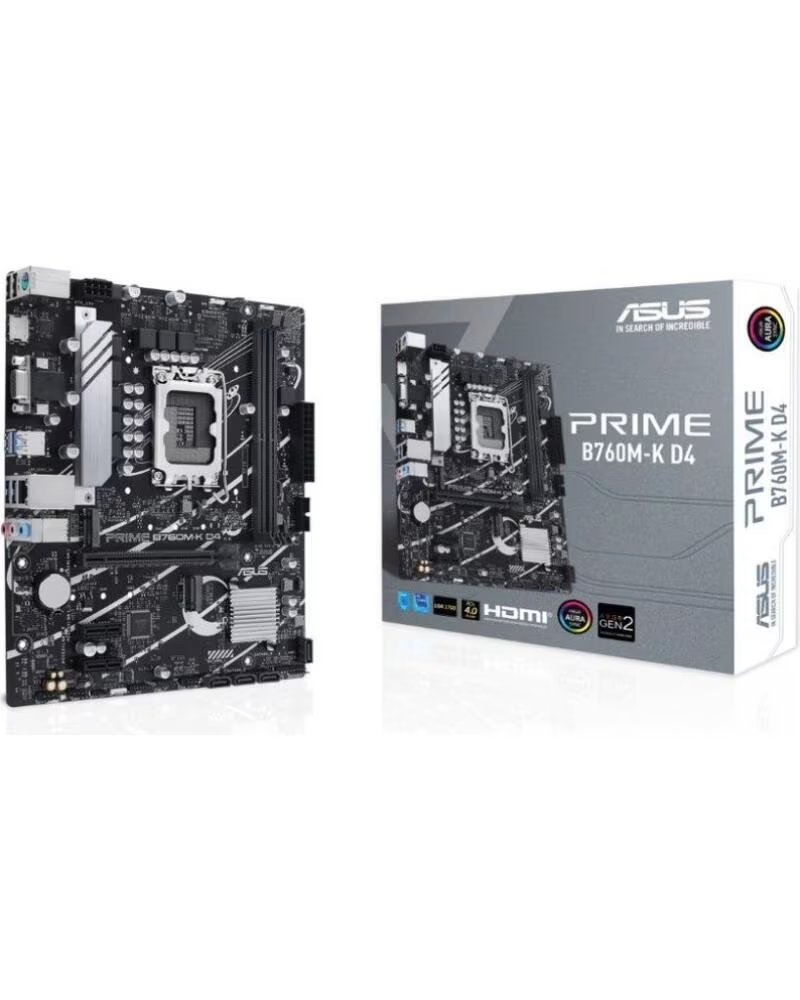

ASUS MOTHERBOARD PRIME B760M-K D4 SOCKET 1700 DDR4 PCIE 40 MICRO ATX

PRIME B760M-K D4

ASUS Prime series motherboards are expertly engineered to unleash the full potential of 13th Generation Intel® Core™ processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME B760M-K D4 provides users and PC builders with a range of performance optimizations via intuitive software and firmware features.

FLEXIBILITY

Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME B760 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

Intelligent Control

ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

UEFI BIOS

The renowned ASUS UEFI BIOS provides everything you need to configure, tweak, and tune your system. It offers intelligently simplifed options for beginners to PC, as well as comprehensive features for seasoned veterans.

All-Around Energy Efficiency

The Power Saving function contains several settings that can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, dim Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saving plan that is built into Microsoft Windows.

COOLING

PRIME B760 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads.

VRM Heatsink and Thermal Pad

The VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chokes for better cooling performance.

PERFORMANCE

PRIME B760 series is built to handle the high core counts and bandwidth demands of 13th Generation Intel Core processors. ASUS B760 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible data transfer options.

Robust Power Design

Stable power is essential to extract every last bit of performance from Intel processors. The PRIME B760M-K D4 is geared to demmand of these high core count CPUs.

Two M.2 Slots (up to 64 Gbps)

PRIME B760 motherboard offers a total of two M.2 slots that support data transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker app load and boot times with OS or application drives.

Realtek 2.5 Gb Ethernet

Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfer.

Specifications

Platform

Socket: LGA1700

Compatible Processors: Intel Core 13th & 12th Gen, Pentium Gold and Celeron

Chipset: Intel B760

Memory

Type: DDR4

Maximum Capacity: 64 GB

Slots: 2 x DIMM

Speeds: up to 5333 MHz (OC)

Architecture: Dual Channel

Compatibility: Non-ECC Unbuffered

XMP Support: Yes

Graphics

1 x VGA

1 x HDMI 2.1 (up to 4K@60Hz)

Expansion

1 x PCIe 4.0 x16

2 x PCIe 4.0 x1

Storage

2 x M.2 (PCIe 4.0 x4)

4 x SATA 6 Gb/s

RAID Support: 0, 1, 5, 10

Networking

Realtek 2.5Gb Ethernet

USB

Rear: 4 x USB 3.2 Gen 1, 2 x USB 2.0

Front:

- 2 x USB 3.2 Gen 1

- 3 x USB 2.0

Audio

Realtek HD Audio

Channels: 7.1

Quality: up to 24-bit/192 kHz

Rear Panel

4 x USB 3.2 Gen 1

2 x USB 2.0

1 x VGA

1 x HDMI

1 x RJ-45 (2.5Gb)

3 x audio jacks

1 x PS/2 combo

Internal Connectors

1 x ATX 24-pin

1 x CPU 8-pin

1 x CPU fan

1 x Chassis fan

2 x M.2

4 x SATA

USB headers, front panel audio, TPM, COM, RGB and ARGB, Clear CMOS

Lighting

Aura Sync (RGB + ARGB Gen 2)

Special Features

ASUS 5X Protection III

Q-DIMM, Q-LED Core, Q-Slot

ProCool

VRM Heatsink

Software

Armoury Crate (Aura Sync, Fan Xpert, Power Saving)

AI Suite 3

ASUS CPU-Z

BIOS

UEFI AMI (128 Mb)

Manageability

WOL, PXE

Accessories

2 x SATA cables

1 x I/O Shield

2 x M.2 Anchors

User Guide

Operating System

Windows 11 / Windows 10 (64-bit)

Form Factor

Micro ATX

Dimensions: 24.4 x 21.1 cm
