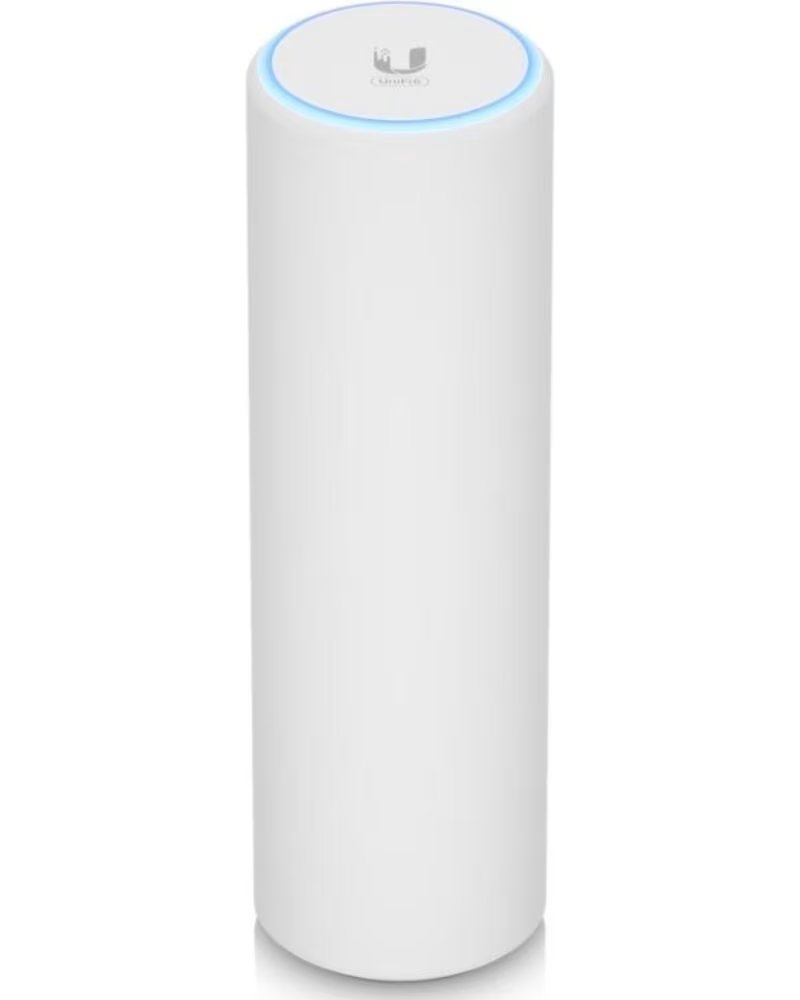

UBIQUITI UNIFI U6 MESH ACCESS POINT WIFI 6

Access Point U6 Mesh

• WiFi 6 support (2.4/5 GHz bands)
• 5.3 Gbps aggregate throughput rate
• Horizontal antenna pattern to expand the coverage area
• (1) GbE RJ45 port (PoE input)*
• Water-resistant enclosure with IPX5 rating

Adopt U6-Mesh in minutes with your UniFi Network application and:

• Centrally manage multiple networks from an intuitive interface
• Enjoy real-time device information and deep configuration options
• Update device firmware remotely
• Manage network users and guests with ease
• Customize the design, architecture, and privacy of guest access points
• Quickly configure devices and manage them on the go with a powerful mobile application

Specifications

Network Connectivity

Network interface: 1 x Gigabit Ethernet RJ-45 port

Management interface: Ethernet

VLAN: IEEE 802.1Q

BSSID: Up to 8 per radio

Concurrent clients: Over 300

Wireless Connectivity

Wi-Fi standards: IEEE 802.11a/b/g, Wi-Fi 4, Wi-Fi 5, and Wi-Fi 6

Frequency bands: 2.4 GHz and 5 GHz

Maximum performance at 2.4 GHz: 573.5 Mbps

Maximum performance at 5 GHz: 4.8 Gbps

MIMO at 2.4 GHz: 2 x 2 UL MU-MIMO

MIMO at 5 GHz: 4 x 4 DL/UL MU-MIMO

Maximum transmission power at 2.4 GHz: 22 dBm

Maximum transmission power at 5 GHz: 26 dBm

Antenna gain at 2.4 GHz: 3 dBi

Antenna gain at 5 GHz: 5 dBi

Security and Wireless Management

Wireless security: WPA-PSK and WPA-Enterprise with WPA, WPA2, and WPA3

Quality of Service: Rate limiting per user

Guest traffic isolation: Supported

Zero-wait DFS: Yes, supported via future firmware versions

Supported Data Rates

IEEE 802.11a: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

IEEE 802.11b: 1, 2, 5.5, and 11 Mbps

IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48, and 54 Mbps

Wi-Fi 4 IEEE 802.11n: 6.5 to 600 Mbps, MCS0 to MCS31, and 20 or 40 MHz HT channels

Wi-Fi 5 IEEE 802.11ac: 6.5 Mbps to 3.4 Gbps, MCS0 to MCS9, NSS1/2/3/4, and 20, 40, 80, or 160 MHz VHT channels

Wi-Fi 6 IEEE 802.11ax: 7.3 Mbps to 4.8 Gbps, MCS0 to MCS11, NSS1/2/3/4, and 20, 40, 80, or 160 MHz HE channels

Power

Power method: PoE

Power source: UniFi PoE switch or included 48V, 0.32A PoE adapter

Supported voltage range: 44 to 57 V DC

Maximum power consumption: 11.4 W

Controls and Indicators

LED indicator: White and blue

Button: Factory reset

Installation

Included mounting: Wall, desk, and pole

Optional mounting: Ceiling

Bracket material: Plastic

Design and Protection

Enclosure material: Plastic and aluminum

Water protection: IPX5

Dimensions: 48.5 mm diameter x 159.5 mm height

Weight: 400 g
