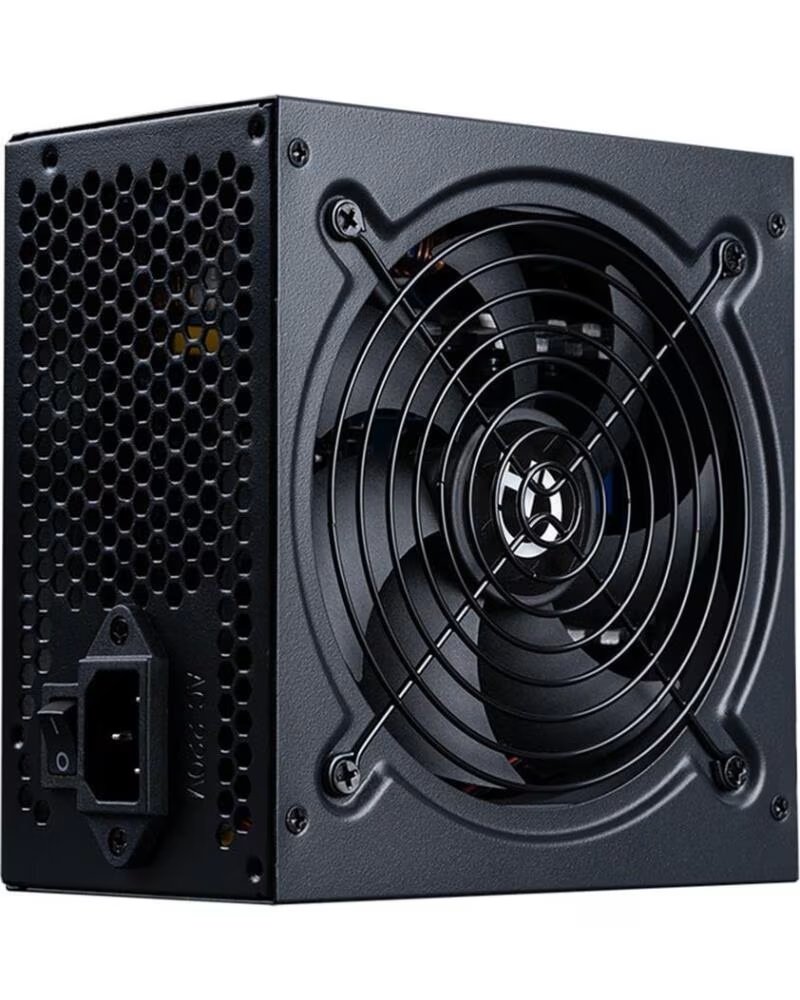

HIDITEC RL650 POWER SUPPLY 650W ATX 80 PLUS BRONZE 12CM FAN

RL650 80PLUS BRONZE

The RL series features 80PLUS BRONZE certification and top-quality components designed to supply stable, high-quality power to high-performance systems. It incorporates an ultra-quiet 120mm fan for improved internal airflow. SMD electronic manufacturing technology with high-performance capacitors.

High-Performance Energy

The RL series features 80PLUS BRONZE certification and top-quality components ready to deliver stable, high-performance power.

It incorporates a quiet 120mm fan to provide greater internal airflow.

80Plus Bronze Certified

RL power supplies feature 80PLUS BRONZE certification, guaranteeing over 85% efficiency, lower power consumption, and greater component durability.

Heat emissions are reduced through more efficient operation, allowing the fan to run at lower speeds and resulting in virtually imperceptible operational noise.

Includes comprehensive protections with OVP / UVP / OPP / SCP / SIP.

SMD Electronic Manufacturing Technology with DC/DC Converter

High-precision SMD electronic assembly technology using high-performance components offers extreme reliability under demanding conditions. SMD technology improves durability and ensures long-term reliable operation.

It also incorporates advanced DC/DC conversion technology that provides stable, secure, and highly efficient power, reducing energy consumption, ensuring accurate voltage regulation, and protecting components under any load condition.

Offers a lifespan exceeding 100,000 hours of operation.

Quiet 120mm Fan

The RL series features a quiet 120mm fan allowing greater internal airflow.

The 120mm fan delivers higher airflow while running at lower revolutions, making fan noise virtually imperceptible while boosting overall component efficiency and durability.

Extra-Long Flat Cables

Extra-long flat cables make installation easier in any chassis, allowing for a cleaner setup, taking up less space, and offering excellent safety and durability.

Featuring a fresh exterior design and fully black-lacquered housing, RL power supplies offer a more robust finish.

5-Year Warranty

The RL series offers reliability and durability backed by a 5-year warranty with support from the HIDITEC technical team.

Specifications

Performance and Power

Power: 650 W

Certification: 80 Plus Bronze

Input Voltage: 230 V

MTBF: 100000 hours

Voltage and Current: +12V 54A / +3.3V 20A / +5V 20A / -12V 0.5A / +5VSB 3A

Cooling

Fan: 120 x 120 x 25 mm

Design and Construction

Form Factor: ATX

Cabling Type: Fixed

Cabling Finish: Flat

Modularity: Non-modular

Connectivity

ATX Connector: 1 x 20+4 pin (600 mm)

CPU Connector: 1 x EPS 4+4 pin (700 mm)

PCIe Connectors: 2 x 6+2 pin (600+150 mm)

SATA Connectors: 4 (500 mm + 3 x 130 mm)

Molex Connectors: 3 (500 mm + 3 x 130 mm)

FDD Connector: 1 (890 mm)

Safety

Protections: OVP, SCP, OPP, SIP, UVP

Certifications: CE, FCC, RoHS

Dimensions and Weight

Dimensions: 150 x 85 x 140 mm

Weight: 1750 g
